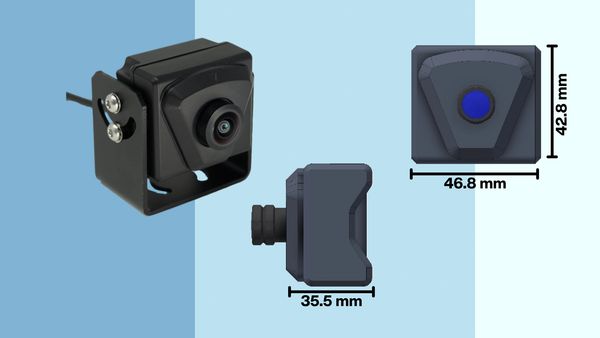

BASIC+ MINI vision camera
The Basic+ mini vision camera is a high-performance Ethernet camera built for real-time image integration in demanding environments. Whether in mobile machinery, industrial equipment, or stationary systems, this camera delivers FullHD clarity with robust design, making it ideal for monitoring hazardous areas and optimizing work processes.
Engineered for Harsh Environments
Designed to thrive in extreme conditions, the ArkCam Basic+ mini operates reliably under shock, vibration, heat, cold, and moisture. Its IP69K-rated aluminum housing withstands high-pressure cleaning and deep immersion, ensuring consistent performance in even the toughest settings.
Key Features
- FullHD 1920x1080 CMOS sensor with HDR
- Single-Pair Ethernet (T1) or Fast Ethernet (TX) model variants
- Up to 5 simultaneous video streams (H.264 or MJPEG)
- Extended temperature range from -40°C to +95°C
- IP68/IP69K protection for water, dust, and high-pressure cleaning
- Configuration via WebGUI and TCP protocol
- Viewing angles: 90° & 130° (custom options available)
- Power supply: 9–60V DC, with low consumption under 3W
- Supports RTP/RTSP, TCP/UDP, REST API, HTTP, ISO17215
- Certified for EMC, shock, and vibration resistance (certificates on request)
Applications-The Basic+ mini vision camera is ideal for:
- Military vehicles
- Industrial automation
- Agricultural & construction equipment
- Process monitoring in hazardous areas
