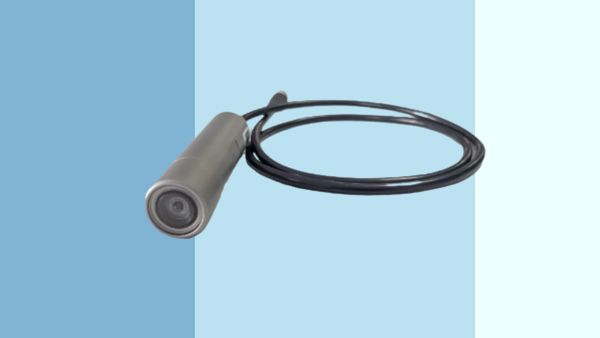

CYLINDER VISION CAMERA

---

The Cylinder vision camera is a powerful and compact Ethernet camera designed for real-time monitoring of hazardous zones and complex work processes in rugged, mobile, or stationary environments. With its FullHD resolution and real-time image transmission capabilities, it is the ideal visual sensor for integrating into modern systems across various industries.

Whether used in harsh industrial settings, agricultural machinery, or construction equipment, the ArkCam Cylinder is built to perform reliably. Its robust design ensures resistance to shock, vibration, temperature extremes, and high-pressure cleaning—making it suitable for the most demanding conditions.

This camera is also adaptable, offering flexible networking options, a range of supported protocols, and the ability to overlay critical data on-screen, making it a powerful tool for increasing safety, efficiency, and situational awareness.

Key Features:

• FullHD Image Sensor for crisp and detailed visuals
• Model Variants for Single-Pair Ethernet (T1) or Fast Ethernet (TX)
• Protocols Supported: RTP/RTSP, TCP/UDP, ONVIF, OPC      UA, HTTP, REST API, ISO17215
• Video Output Formats: MJPEG or H.264
• Wide Power Supply Range: 9–60V DC
• Extended Temperature Range:–40°C to +95°C
• High Mechanical Load Capacity: Withstands up to 50g
• IP69K Protection: Built for high-pressure, steam-jet cleaning environments

The Cylinder vision camera offers the perfect balance of durability, adaptability, and high-quality video performance for mission-critical applications.
