MIL-DTL-26482 Connectors series 2

---

High-Performance Miniature Connectors for Aerospace, Defense & Industrial Applications

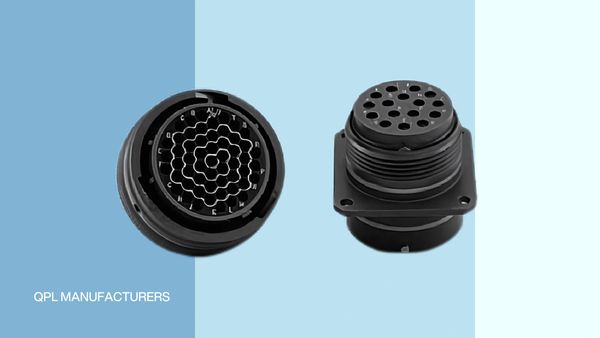

Elimec USA offers the MIL-DTL-26482 Series II connector line, a robust and reliable upgrade to the original Series I, featuring a bayonet coupling mechanism and rear-removable crimp contacts. These miniature cylindrical connectors are engineered to meet demanding performance requirements across aerospace, military, and industrial systems where size, weight, and durability are critical.

Fully intermountable and interchangeable with Series I (solder or front-release crimp) and functionally identical to the now-inactive MIL-DTL-83723 Series I, Series II connectors ensure backward compatibility while enhancing reliability and serviceability.

Key Features & Benefits

• Quick Bayonet Coupling
  Secure connection with fast mating/unmating ideal for time-critical or high-vibration environments.
• Versatile Receptacle Options
  Available in four mounting styles:
  • Narrow flange wall mount
  • Wide flange wall mount
  • Cable connecting receptacles
  • Jam nut receptacles with built-in O-ring for “D” hole panel sealing
• RFI-Ready Plugs
  Offered with or without RFI grounding to meet electromagnetic      compatibility needs.
• Wide Range of Insert Arrangements
  Qualified to 33 layouts per MIL-STD-1669 using 3 to 61 M39029 contacts in sizes 20, 16, and 12—supporting wire sizes from 24 to 12 AWG.
• Multiple Shell Material & Finish Options
  • Aluminum: Electroless nickel, olive drab cadmium, black anodic
  • Stainless Steel: Passivated (RoHS compliant)
  • Nickel-Aluminum-Bronze: For highly corrosive environments (commercial callouts only)
  • Other RoHS-compliant options: zinc cobalt, black zinc-nickel,       black nickel
• Insert & Shell Polarization
  Alternate clocking and key/keyway options to prevent mismating of similar connectors.
• Advanced Sealing System
  • Closed-entry socket insert with chamfered lead-ins
  • Interfacial seals to block moisture ingress
  • Elastomer grommets with triple wire seals
  • Dynamic O-ring for sealing plug-to-receptacle interface
• Superior Contact Stability
  Rear-release crimp system using stamped beryllium-copper clips for secure, damage-resistant retention. Contacts are easily inserted/removed using a universal plastic I/R tool (M81969).

Performance Specifications

• Operating Temperature
  • Classes A, L, S: –55°C to +200°C (–67°F to +392°F)
  • Classes W, Z, BN: –55°C to +175°C (–67°F to +347°F)
• Corrosion Resistance
  • 500-hour salt spray: A, S, W, Z
  • 350-hour salt spray: BN
  • 48-hour salt spray: L
• Durability
  • RFI Plug (MS3475): 250 mating cycles
  • Standard Plug (MS3476): 500 mating cycles
• Environmental Sealing
  • Meets altitude-immersion test per MIL-DTL-26482 Series 2
• Fluid Resistance
  • Resistant to hydraulic fluids, lubricants, jet fuels (JP-5),       gasoline (ASTM D4814), defrosting fluids, and solvents per MIL-STD-202 Method 215

Electrical & EMI Performance

• Shock Resistance
  • 300 G pulse, 3 ms duration in all three axes
• Vibration Performance
  • Per MIL-STD-202, Method 214, Test Condition II, Letter J
• Shielding Effectiveness
  • RFI attenuation tested using triaxial radio frequency leakage       fixture
  • Meets MIL-DTL-26482 Series II specs
• Shell-to-Shell Conductivity
  • With RFI spring fingers: ≤ 5 millivolts
  • Without spring fingers: ≤ 200 millivolts
  •


Why Choose MIL-DTL-26482 Series 2?

MIL-DTL-26482 Series 2 connectors deliver the perfect combination of size, speed, sealing, and reliability. Whether you're retrofitting a legacy system or designing for a modern aerospace platform, these connectors offer superior performance and long-term durability.

📞 Contact Elimec USA to request a quote or technical assistance for your next project.
