Our D38999 Series III connectors include:

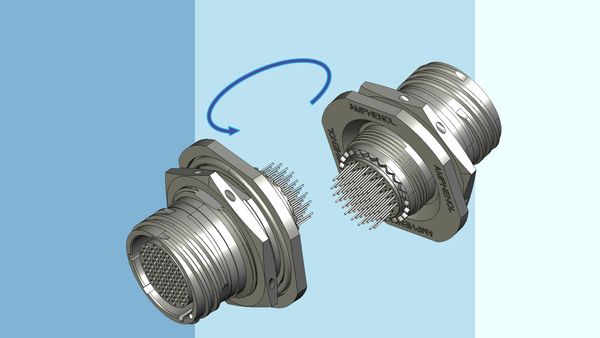

Ruggedized receptacle panel connectors (D38999/20 and D38999/24) for direct PCB mounting.
Compliance with MIL-DTL-38999 specifications, ensuring reliability under extreme conditions.
PCB contacts conforming to AS39029 standards.
Full intermateability with standard D38999/26 cable plugs.
Markings per MIL-DTL-38999 requirements, with modified codes (A and B replacing P and S) to denote nonstandard contacts

Benefits:

Faster Delivery: Ensure your projects stay on schedule with quick lead times.
No MOQ: Flexible ordering to meet your specific needs.
Customization: Multiple options for standard PCB stick-out lengths and diameters, as well as custom designs.

Contact Features:

Pre-installed PCB contacts.
Sizes available: #22D, #20, #16, and #12.
Optional pre-tinning of PCB tails.

Key Features

Key Features

Key Features

Proven Design:

Based on QPL-certified connectors, ensuring top-tier quality and performance.

Connector Shell Options:

Wall mount receptacle.
Jam nut receptacle.

Material and Finish Options:

W: Aluminum shell with olive drab cadmium over nickel base.
Z: Aluminum shell with black zinc nickel finish.
F: Aluminum shell with electroless nickel finish.
K: Stainless steel shell, passivated.
BZ: Aluminum nickel bronze shell.
T: Aluminum shell with conductive nickel fluoro-carbon polymer finish.

Additional Options:

Alignment discs to simplify connector insertion into PCB holes and save installation time.
Epoxy sealing for enhanced environmental protection.

Applications

Key Features

Key Features

D38999 Series III connectors are suitable for a wide range of industries and applications, including:

Ground vehicle systems.
Military aircraft avionics.
Naval electronics.
Battlefield communication (C5ISR systems).
Commercial and industrial automation controls.
Robotics.
Satellite communications.
